AHS-YS
容許扭矩最大增至150%※
Allowable torque increased up to 150%
與傳統產品相比，通過提高容許扭矩值，可減小聯軸器的尺寸。
The size of the coupling can be reduced by increasing the allowable torque value compared to conventional products.
※ 與本公司傳統產品相比
容許扭矩比較表 Allowable Torque Comparison Table
傳統產品
Conventional Product
新形狀
New Shape
型號
Model
容許扭矩
Allowable Torque
N?m
型號
Model
容許扭矩
Allowable Torque
N?m
AHS-65 80 AHS-68 120
- - AHS-78 250
AHS-87 250 AHS-88 350
AHS-100 350 AHS-104 550
采用同一方向的側向鎖緊結構，安裝時間減少了一半
Installation time reduced by half by adopting the same direction side clamp structure
通過將鎖緊螺栓平行設置，可從同一方向 緊固鎖緊螺栓，作業效率得到提高。
The work efficiency is improved because the lock bolts can be tightened from the same direction by arranging the lock bolts in parallel.
鎖緊螺栓采用同一方向，組裝作業效率提高!
The operability for assembly is improved by making the direction of the lock bolts the same!
扭轉彈簧常數最大增至210%※
Torsion spring constant increased up to 210%

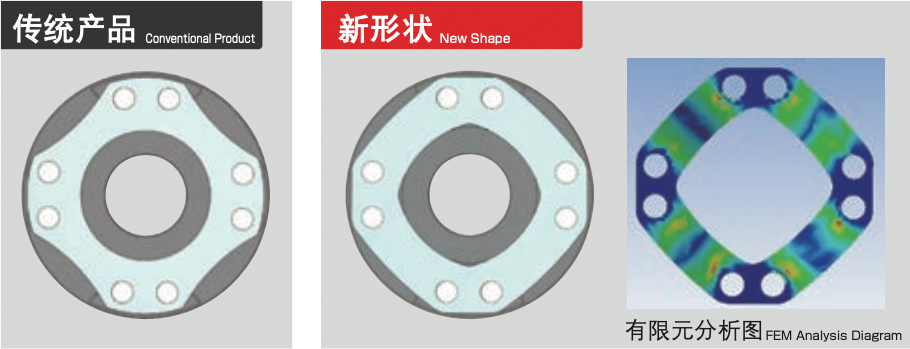

通過改進板簧形狀并增加板簧鎖緊力，扭轉彈簧常數提高至傳統產品的約1.6~2.1倍。
By reviewing the leaf spring shape and increasing the leaf spring clamping force, the torsion spring constant is improved by about 1.6 to 2.1 times compared to the conventional products.
※ 與本公司傳統產品相比
扭轉彈簧常數比較表 Torsion Spring Constant Comparison Table
傳統產品
Conventional Product
新形狀
New Shape
型號
Model
扭轉彈簧常數
Torsion Spring Constant
N?m/rad
型號
Model
扭轉彈簧常數
Torsion Spring Constant
N?m/rad
AHS-65 120000 AHS-68 260000
- - AHS-78 440000
AHS-87 330000 AHS-88 500000
AHS-100 420000 AHS-104 750000

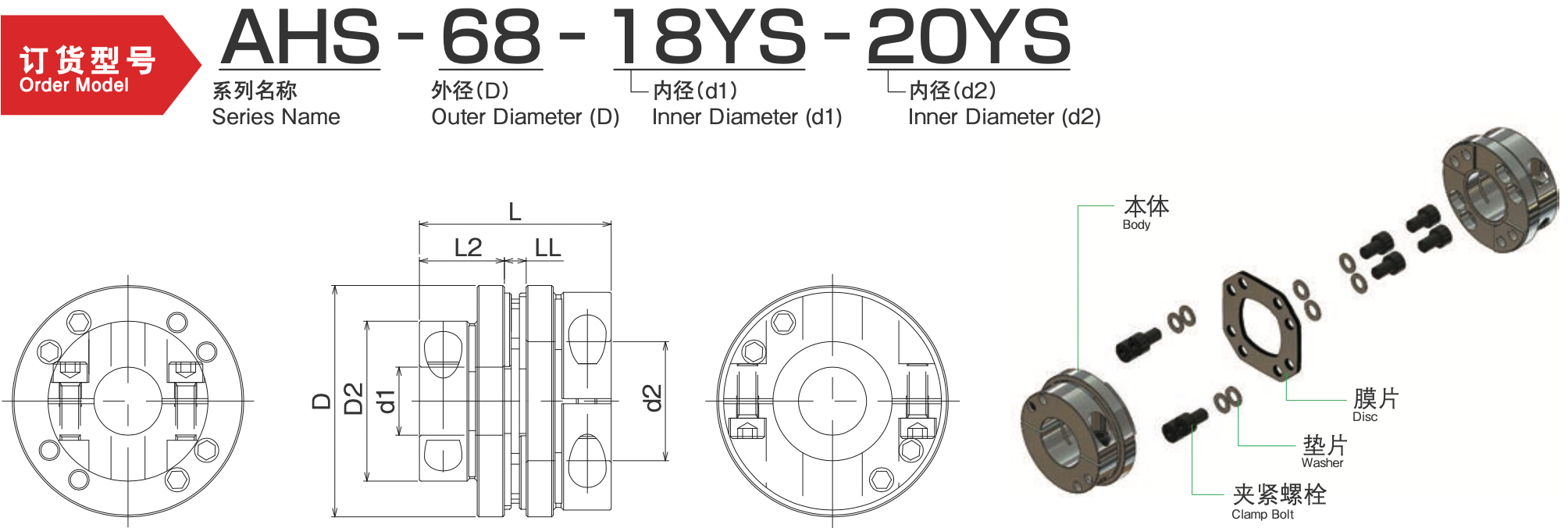

規格、結構圖 Specifications / Structure
型號
Model
d1?d2 選擇(其中d1≦d2)
d1 & d2 Selection (Here, d1≤d2)
D
D2
L
L2
LL
最大容許扭矩
Max. Allowable Torque
N?m
容許偏角
Allowable Declination
°
容許軸向游隙
Allowable End Play
mm
扭轉彈簧常數
Torsion Spring Constant
N?m/rad
軸向彈簧常數
Axial Spring Constant
N/mm
慣性力矩
Moment of Inertia
Kg?m2
重量
Weight
Kg
AHS-68 18?19?20?22?24?25?28?30?32?35 68 47(~22)64(24~) 56.1 25 6.1 120 1.0 0.50 260000 202 6.45×10-4 0.94
AHS-78 22?24?25?28?30?32?35 78 71 66.4 30 6.4 250 1.0 0.55 440000 314 1.31×10-3 1.57
AHS-88 25?28?30?32?35?38?40?42 88 81 67.0 30 7.0 350 1.0 0.60 500000 146 2.33×10-3 2.10
AHS-104 32?35?38?40?42?45?48?50 104 98 84.2 38 8.2 550 1.0 0.75 750000 170 5.67×10-3 3.60
型號
Model
d1?d2
鎖緊螺栓
Lock Bolt
18
19
20
22
24
25
28
30
32
35
38
40
42
45
48
50
尺寸
Size
緊固扭矩
Tightening Torque
N?m
AHS-68 90 90 100 100 120 120 120 120 120 120 M6 15
AHS-78 250 250 250 250 250 250 250 M8?M6(32?35) 34
AHS-88 330 350 350 350 350 350 350 350 M8 34
AHS-104 550 550 550 550 550 550 550 550 M10 60
