高精密滾針型導柱 GRG系列 模具用

MILLION GUIDE GRG Series For die-set
標準套件尺寸圖 Standard set size figure
零件編號
Part number
構成零件
Component
零件名稱
Part name
材質
Material
注釋
Notes
1
導柱
Post
專用鋼
Special purpose steel
硬度HRC60~63
Hardness
2
導套
Bush
專用鋼
Special purpose steel
硬度HRC60~63
Hardness
3
滾針套
Retainer
工程塑料
Engineering plastic
滾針:專用鋼
Roller:Special purpose steel
4
底蓋
End cap
碳鋼
Carbon steel
5
彈簧
Spring
鋼琴線
Piano wire
配件記號
Option symbol
6 OP
可動擋塊
Movable stopper
碳鋼
Carbon steel 		S
7 OP
備用滾針套
Spare retainer
工程塑料
Engineering plastic
L: 工程塑料
Engineering plastic
※OP ?配件 Optional part

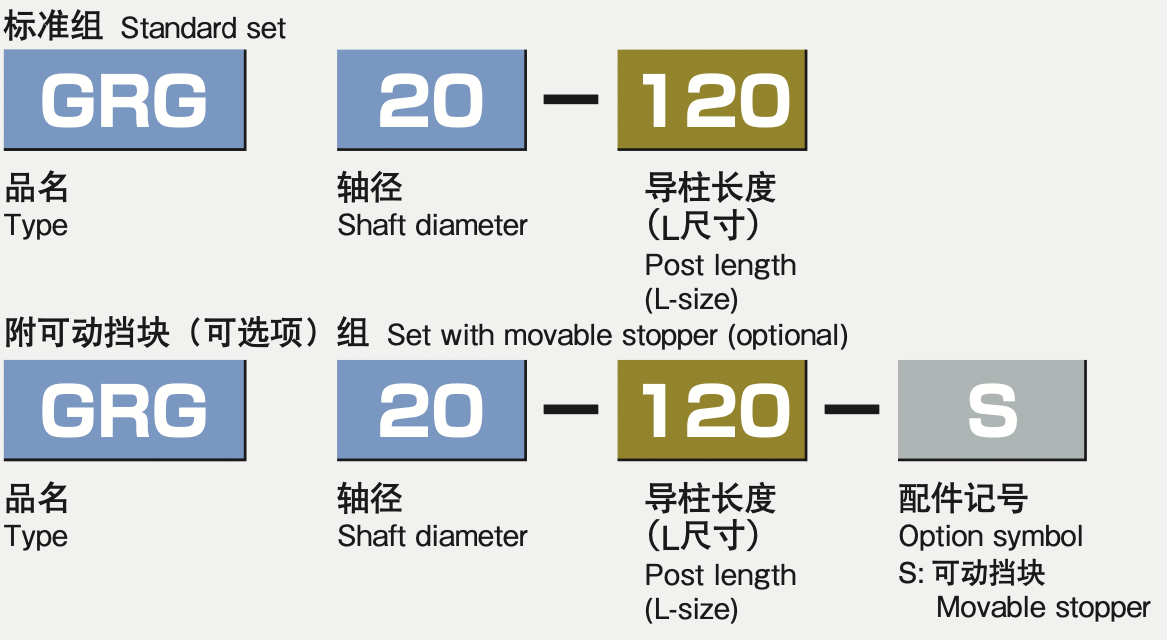

訂購型號 Order type

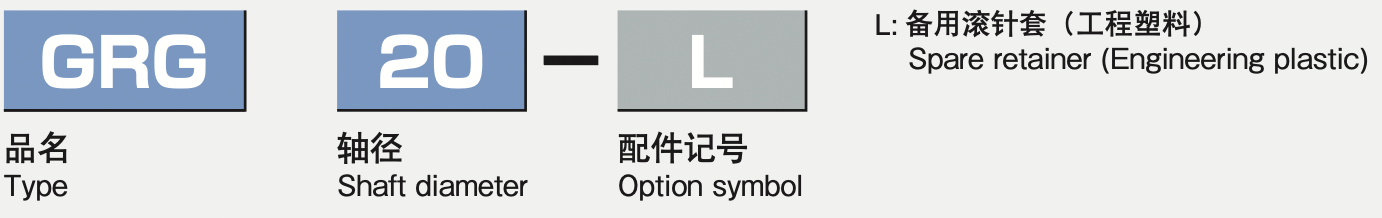

備用滾針套(可選項) Spare retainer(optional)

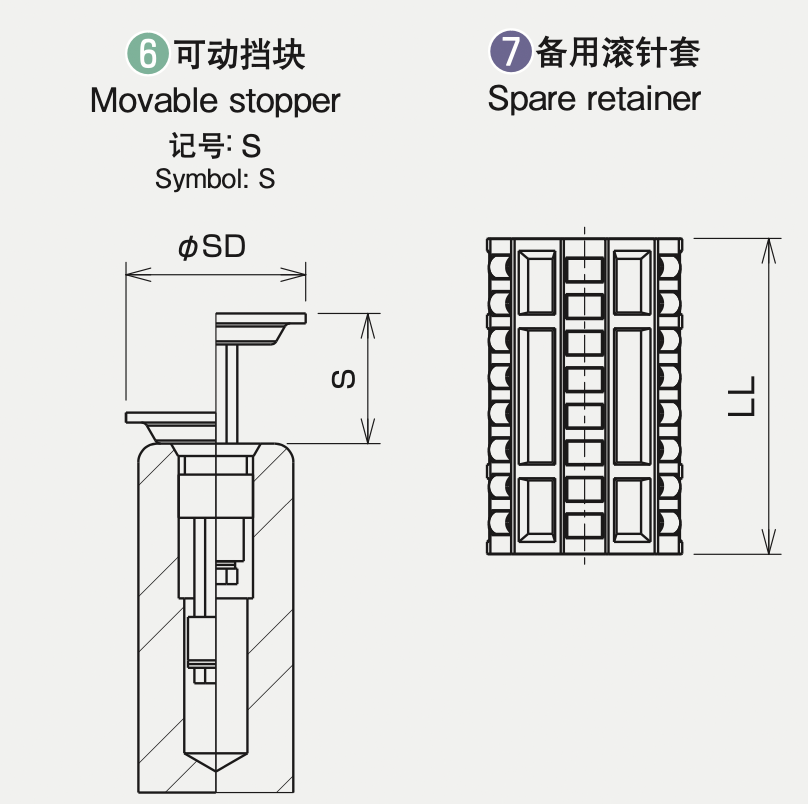

配件尺寸圖 Optional item size figure
標準套件尺寸表 Standard set size table
1
導柱
Post 		2
導套
Bush 		3 7
滾針套
Retainer 		4
底蓋
End cap 		6
可動擋塊
Movable stopper
品名
Product name
 φD L(選擇) φD1 L1 L2 T M×深 φDS LS LL L3 L4 φD2 附屬螺絲
Screw size
 φSD S
GRG13 13 50?60?70 20 10 7 5 M6x15 24 30 25 8 4 17 M6x15 - -
GRG16 16 50?60?80 23 10 7 5 M6x15 30 40 30 10 4 22 M6x15 - -
GRG20 20 90?100?120 29 15 7.5 5 M8x18 37 50 40 14 7 28 M8x25 24 17
GRG25 25 100?120?130 36 18 9 8 M8x18 44 61 51 14 7 35 M8x25 29 21
GRG28 28 95?120?140?160 39 20 10 10 M10x22 47 67 57 16 8 36 M10x30 33 21
GRG32 32 120?140?160 44 23 11.5 10 M10x22 54 73 63 16 8 40 M10x30 37 28
GRG38 38 140?160?180 53 27 13.5 12 M12x27 64 78 66 18 10 49 M12x35 44 25
彈簧長度標準設計表 Srandard setting table of spring length

彈簧長度RL(無可動擋塊用) Spring length RL (without movable stopper)

D/L 50 60 70 80 90 95 100 120 130 140 160 180
13 30 40 50 - - - - - - - - -
16 30 40 - 60 - - - - - - - -
20 - - - - 70 - 80 100 - - - -
25 - - - - - - 70 90 100 - - -
28 - - - - - 60 - 80 - 100 120 -
32 - - - - - - - 85 - 105 125 -
38 - - - - - - - - - 95 115 135

彈簧長度RL(附可動擋塊用) Spring length RL (without movable stopper)

D/L 90 95 100 120 130 140 160 180
20 80 - 90 110 - - - -
25 - - 80 100 120 - - -
28 - 70 - 90 - 100 130 -
32 - - - 95 - 115 145 -
38 - - - - - 105 135 155
