精密滾針導柱?為采用滾針的直線運動導柱，結構簡單， 實現了“高剛性、高精度和低振動!!”

Million guide? is“highly rigid, highly accurate & low vibration”owing to its simple mechanism using needle rollers.
各部分名稱 Part name
導柱軸、導套
【材質: 專用鋼或馬氏體不銹鋼】

Bush & Post (Material: Special purpose steel or Martensitic stainless steel)

滾針 【材質: 專用鋼】
Needle roller (Material: Special purpose steel)

預壓量2μm~6μm的狀態下出貨。 Shipped with 2μm~6μm pre-load.

滾針套 【材質: 工程塑料或耐熱工程塑料】

Retainer (Material: Engineering plastic or Heat-resistant engineering plastic)

5

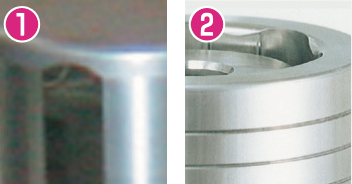

對刻印 Counter marks
導套下面和導柱軸法蘭側面的對刻印位置要對齊。 由于是在對刻印對齊的狀態下進行最終精加工的，如果不對齊就無法使用。

Set the counter marks of the bush (bottom side) and the post flange (side face) at the same rotational position. You cannot use Million guide under the condition that the counter marks does not meet, since the final finish is made with the counter marks at the same position.

6
系列編號 Serial No.
導柱軸和導套上刻有特定的系列編號。本產品是對導柱軸和導套進行1對1管理、 生產的，不能隨意組合使用。務必按系列編號進行組合。

The original serial numbers are carved on the post and the bush. Million guide is controlled and manufactured at the pair of the post and the bush, so you cannot use it with the different serial numbers. Check the serial number combination before usage.

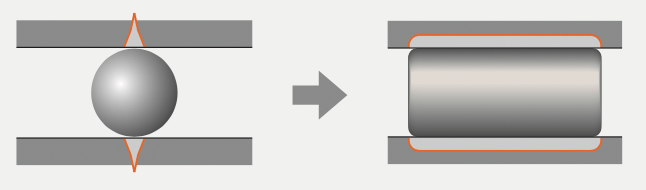

從點到線 Point to line

“ 從滾珠變?yōu)闈L針 ”，通過采用滾針作為滾動體，實 現了高精度的直線運動性。直線運動導柱的“ 終極 形態 ”

“Ball to needle roller”, Million guide adopts needle rollers as rolling element and realizes highly accurate linear motion. This is the“ultimate form of linear guide”.

無側隙、低噪音、長壽命、長行程“GBT系列” (軸導柱)

“GBT Series”(Shaft guide)is of no backlash, low noise and long life time with long stroke.
結構 Structure

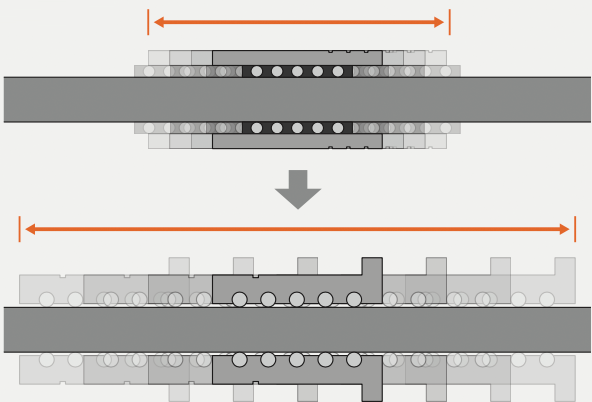

改進型滾針導柱 Evolutional roller guide

開發出了不使用滾針套而也可保持軸承的新結構，實現了長行程。
為滿足客戶需求而不斷改進…

New structure of retainer-less roller follower in multi-line arrangement
Further evolution for customer needs
